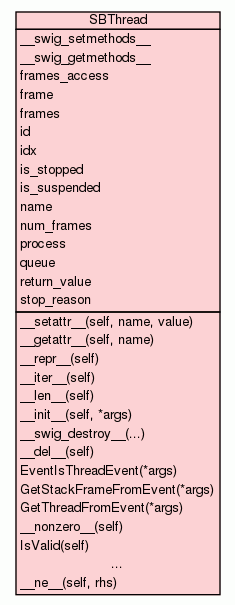

Class SBThread

source code


Represents a thread of execution. SBProcess contains SBThread(s).

SBThreads can be referred to by their ID, which maps to the system specific thread
identifier, or by IndexID.  The ID may or may not be unique depending on whether the
system reuses its thread identifiers.  The IndexID is a monotonically increasing identifier
that will always uniquely reference a particular thread, and when that thread goes
away it will not be reused.

SBThread supports frame iteration. For example (from test/python_api/
lldbutil/iter/TestLLDBIterator.py),

        from lldbutil import print_stacktrace
        stopped_due_to_breakpoint = False
        for thread in process:
            if self.TraceOn():
                print_stacktrace(thread)
            ID = thread.GetThreadID()
            if thread.GetStopReason() == lldb.eStopReasonBreakpoint:
                stopped_due_to_breakpoint = True
            for frame in thread:
                self.assertTrue(frame.GetThread().GetThreadID() == ID)
                if self.TraceOn():
                    print frame

        self.assertTrue(stopped_due_to_breakpoint)

See also SBProcess and SBFrame.
Nested Classes [hide private]
  frames_access
A helper object that will lazily hand out frames for a thread when supplied an index.
Instance Methods [hide private]

__setattr__(self, name, value)
x.__setattr__('name', value) <==> x.name = value		 source code

__getattr__(self, name) source code

__repr__(self)
repr(x)		 source code

__iter__(self) source code

__len__(self) source code

__init__(self, *args)
__init__(lldb::SBThread self) -> SBThread __init__(lldb::SBThread self, SBThread thread) -> SBThread		 source code

__swig_destroy__(...)
delete_SBThread(SBThread self)

__del__(self) source code

__nonzero__(self) source code

IsValid(self)
IsValid(SBThread self) -> bool		 source code

Clear(self)
Clear(SBThread self)		 source code

GetStopReason(self)
GetStopReason(SBThread self) -> lldb::StopReason		 source code

GetStopReasonDataCount(self)
GetStopReasonDataCount(SBThread self) -> size_t		 source code

GetStopReasonDataAtIndex(self, *args)
GetStopReasonDataAtIndex(SBThread self, uint32_t idx) -> uint64_t		 source code

GetStopDescription(self, *args)
Pass only an (int)length and expect to get a Python string describing the stop reason.		 source code

GetStopReturnValue(self)
GetStopReturnValue(SBThread self) -> SBValue		 source code

GetThreadID(self)
GetThreadID(SBThread self) -> lldb::tid_t		 source code

GetIndexID(self)
GetIndexID(SBThread self) -> uint32_t		 source code

GetName(self)
GetName(SBThread self) -> str const *		 source code

GetQueueName(self)
GetQueueName(SBThread self) -> str const *		 source code

StepOver(self, *args)
StepOver(SBThread self, lldb::RunMode stop_other_threads=eOnlyDuringStepping) StepOver(SBThread self)		 source code

StepInto(self, *args)
StepInto(SBThread self, lldb::RunMode stop_other_threads=eOnlyDuringStepping) StepInto(SBThread self) StepInto(SBThread self, str const * target_name, lldb::RunMode stop_other_threads=eOnlyDuringStepping) StepInto(SBThread self, str const * target_name)		 source code

StepOut(self)
StepOut(SBThread self)		 source code

StepOutOfFrame(self, *args)
StepOutOfFrame(SBThread self, SBFrame frame)		 source code

StepInstruction(self, *args)
StepInstruction(SBThread self, bool step_over)		 source code

StepOverUntil(self, *args)
StepOverUntil(SBThread self, SBFrame frame, SBFileSpec file_spec, uint32_t line) -> SBError		 source code

RunToAddress(self, *args)
RunToAddress(SBThread self, lldb::addr_t addr)		 source code

ReturnFromFrame(self, *args)
ReturnFromFrame(SBThread self, SBFrame frame, SBValue return_value) -> SBError		 source code

Suspend(self)
Suspend(SBThread self) -> bool		 source code

Resume(self)
Resume(SBThread self) -> bool		 source code

IsSuspended(self)
IsSuspended(SBThread self) -> bool		 source code

IsStopped(self)
IsStopped(SBThread self) -> bool		 source code

GetNumFrames(self)
GetNumFrames(SBThread self) -> uint32_t		 source code

GetFrameAtIndex(self, *args)
GetFrameAtIndex(SBThread self, uint32_t idx) -> SBFrame		 source code

GetSelectedFrame(self)
GetSelectedFrame(SBThread self) -> SBFrame		 source code

SetSelectedFrame(self, *args)
SetSelectedFrame(SBThread self, uint32_t frame_idx) -> SBFrame		 source code

GetProcess(self)
GetProcess(SBThread self) -> SBProcess		 source code

GetDescription(self, *args)
GetDescription(SBThread self, SBStream description) -> bool		 source code

GetStatus(self, *args)
GetStatus(SBThread self, SBStream status) -> bool		 source code

get_frames_access_object(self)
An accessor function that returns a frames_access() object which allows lazy frame access from a lldb.SBThread object.		 source code

get_thread_frames(self)
An accessor function that returns a list() that contains all frames in a lldb.SBThread object.		 source code

__str__(self)
__str__(SBThread self) -> PyObject *		 source code

__eq__(self, rhs) source code

__ne__(self, rhs) source code

Inherited from object: __delattr__, __format__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __sizeof__, __subclasshook__

Static Methods [hide private]

EventIsThreadEvent(*args)
EventIsThreadEvent(SBEvent event) -> bool		 source code

GetStackFrameFromEvent(*args)
GetStackFrameFromEvent(SBEvent event) -> SBFrame		 source code

GetThreadFromEvent(*args)
GetThreadFromEvent(SBEvent event) -> SBThread		 source code
Class Variables [hide private]
  __swig_setmethods__ = {}
  __swig_getmethods__ = {}
Properties [hide private]
  frame
A read only property that returns an object that can be used to access frames as an array ("frame_12 = lldb.thread.frame[12]").
  frames
A read only property that returns a list() of lldb.SBFrame objects for all frames in this thread.
  id
A read only property that returns the thread ID as an integer.
  idx
A read only property that returns the thread index ID as an integer.
  is_stopped
A read only property that returns a boolean value that indicates if this thread is stopped but not exited.
  is_suspended
A read only property that returns a boolean value that indicates if this thread is suspended.
  name
A read only property that returns the name of this thread as a string.
  num_frames
A read only property that returns the number of stack frames in this thread as an integer.
  process
A read only property that returns an lldb object that represents the process (lldb.SBProcess) that owns this thread.
  queue
A read only property that returns the dispatch queue name of this thread as a string.
  return_value
A read only property that returns an lldb object that represents the return value from the last stop (lldb.SBValue) if we just stopped due to stepping out of a function.
  stop_reason
A read only property that returns an lldb enumeration value (see enumerations that start with "lldb.eStopReason") that represents the reason this thread stopped.

Inherited from object: __class__

Method Details [hide private]

__setattr__(self, name, value)

source code

x.__setattr__('name', value) <==> x.name = value

Overrides: object.__setattr__
(inherited documentation)

__repr__(self)
(Representation operator)

source code

repr(x)

Overrides: object.__repr__
(inherited documentation)

__init__(self, *args)
(Constructor)

source code

__init__(lldb::SBThread self) -> SBThread __init__(lldb::SBThread self, SBThread thread) -> SBThread

Overrides: object.__init__

GetStopReasonDataCount(self)

source code

GetStopReasonDataCount(SBThread self) -> size_t

Get the number of words associated with the stop reason. See also GetStopReasonDataAtIndex().

GetStopReasonDataAtIndex(self, *args)

source code

GetStopReasonDataAtIndex(SBThread self, uint32_t idx) -> uint64_t

Get information associated with a stop reason.

Breakpoint stop reasons will have data that consists of pairs of breakpoint IDs followed by the breakpoint location IDs (they always come in pairs).

Stop Reason Count Data Type ======================== ===== ========================================= eStopReasonNone 0 eStopReasonTrace 0 eStopReasonBreakpoint N duple: {breakpoint id, location id} eStopReasonWatchpoint 1 watchpoint id eStopReasonSignal 1 unix signal number eStopReasonException N exception data eStopReasonExec 0 eStopReasonPlanComplete 0

Suspend(self)

source code

Suspend(SBThread self) -> bool

LLDB currently supports process centric debugging which means when any thread in a process stops, all other threads are stopped. The Suspend() call here tells our process to suspend a thread and not let it run when the other threads in a process are allowed to run. So when SBProcess::Continue() is called, any threads that aren't suspended will be allowed to run. If any of the SBThread functions for stepping are called (StepOver, StepInto, StepOut, StepInstruction, RunToAddres), the thread will now be allowed to run and these funtions will simply return.

Eventually we plan to add support for thread centric debugging where each thread is controlled individually and each thread would broadcast its state, but we haven't implemented this yet.

Likewise the SBThread::Resume() call will again allow the thread to run when the process is continued.

Suspend() and Resume() functions are not currently reference counted, if anyone has the need for them to be reference counted, please let us know.

__str__(self)
(Informal representation operator)

source code

__str__(SBThread self) -> PyObject *

Overrides: object.__str__

Property Details [hide private]

frame

A read only property that returns an object that can be used to access frames as an array ("frame_12 = lldb.thread.frame[12]").

Get Method:
get_frames_access_object(self) - An accessor function that returns a frames_access() object which allows lazy frame access from a lldb.SBThread object.

frames

A read only property that returns a list() of lldb.SBFrame objects for all frames in this thread.

Get Method:
get_thread_frames(self) - An accessor function that returns a list() that contains all frames in a lldb.SBThread object.

id

A read only property that returns the thread ID as an integer.

Get Method:
GetThreadID(self) - GetThreadID(SBThread self) -> lldb::tid_t

idx

A read only property that returns the thread index ID as an integer. Thread index ID values start at 1 and increment as threads come and go and can be used to uniquely identify threads.

Get Method:
GetIndexID(self) - GetIndexID(SBThread self) -> uint32_t

is_stopped

A read only property that returns a boolean value that indicates if this thread is stopped but not exited.

Get Method:
IsStopped(self) - IsStopped(SBThread self) -> bool

is_suspended

A read only property that returns a boolean value that indicates if this thread is suspended.

Get Method:
IsSuspended(self) - IsSuspended(SBThread self) -> bool

name

A read only property that returns the name of this thread as a string.

Get Method:
GetName(self) - GetName(SBThread self) -> str const *

num_frames

A read only property that returns the number of stack frames in this thread as an integer.

Get Method:
GetNumFrames(self) - GetNumFrames(SBThread self) -> uint32_t

process

A read only property that returns an lldb object that represents the process (lldb.SBProcess) that owns this thread.

Get Method:
GetProcess(self) - GetProcess(SBThread self) -> SBProcess

queue

A read only property that returns the dispatch queue name of this thread as a string.

Get Method:
GetQueueName(self) - GetQueueName(SBThread self) -> str const *

return_value

A read only property that returns an lldb object that represents the return value from the last stop (lldb.SBValue) if we just stopped due to stepping out of a function.

Get Method:
GetStopReturnValue(self) - GetStopReturnValue(SBThread self) -> SBValue

stop_reason

A read only property that returns an lldb enumeration value (see enumerations that start with "lldb.eStopReason") that represents the reason this thread stopped.

Get Method:
GetStopReason(self) - GetStopReason(SBThread self) -> lldb::StopReason
